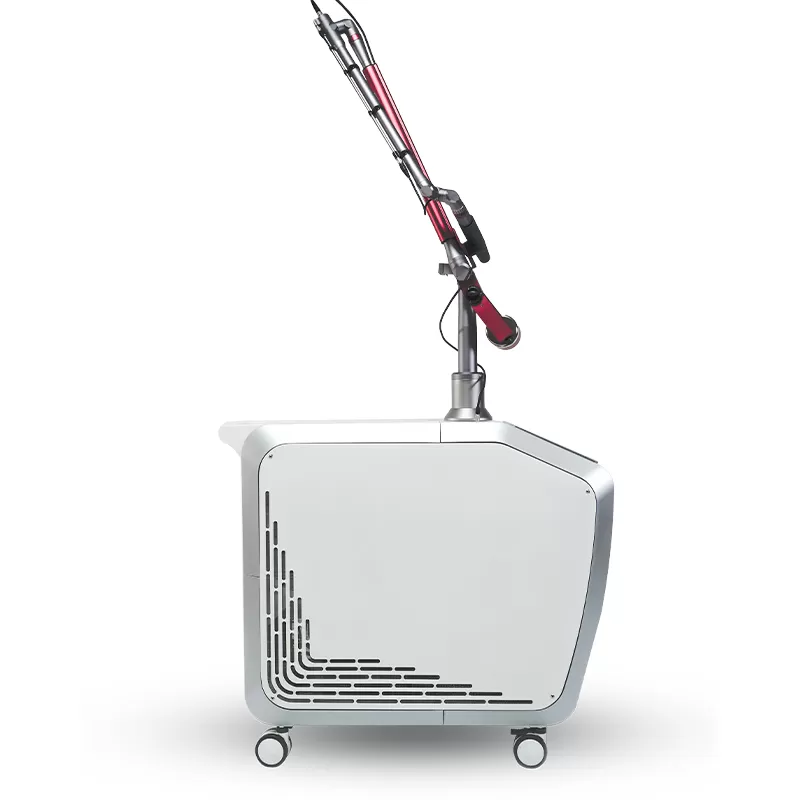

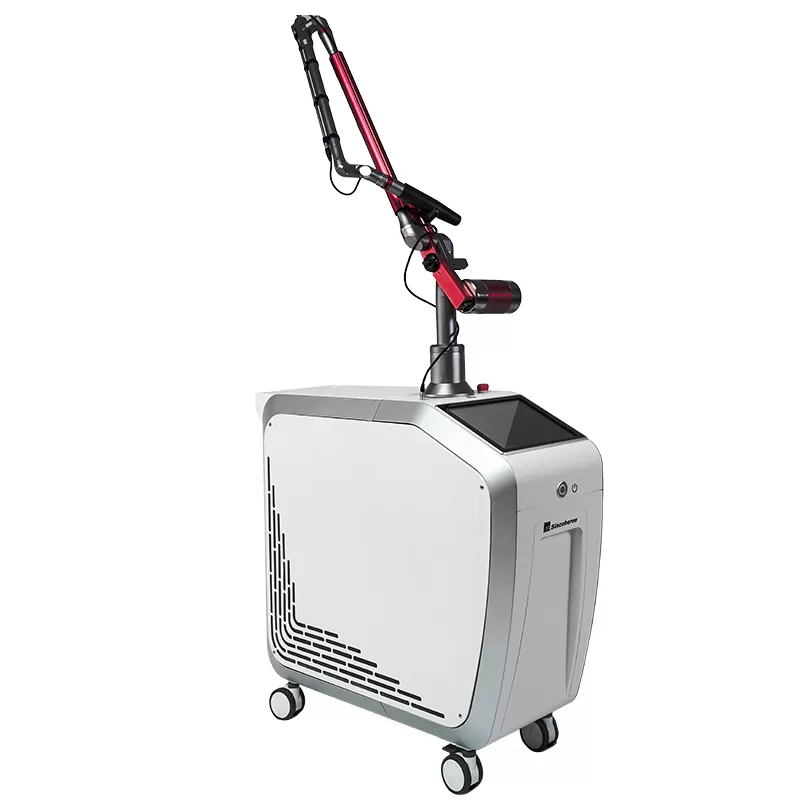

ExQ-Laser™ is newly released Q-Switched Nd:YAG laser therapy system. The system has an optimal clinical treatment effect with following parameter designs: dual wavelength switching of 1064nm & 532nm, pulse width short to 5ns and Energy output up to 1200mJ.

Overview

Characteristics

Before/After

Advantages of ExQ-Laser™


Powerful single pulse

The single pulse energy can be up to 1200MJ to eliminate the deeply endogenous pigmentation thoroughly and easily.

Efficiency and safety

Flat-Top Beam output, uniformly distributed spot energy without any heat point, achieve better treatment effect and less injuries.

Real-time monitoring

Real-time energy monitor & Auto-Calibration System provides consistent and stable energy output.

Warranty 3 years

We pay much attention to the quality, therefore we give a 3-year warranty for the equipment


Q-Switched ND YAG Laser Machine


Tattoo removal laser


Thoughtful design

ExQ-Laser™ integrated with real-time energy monitor, energy auto-changing by adjustable handpiece, water filtration system, sufficiently guarantee the safety and efficiency during using. New UI designs focused on user experience, make the operation simpler and more convenient.

Safe and trusted

ExQ-Laser™ is safety and reliable with excellent performance, has successively achieved Certificates from CFDA, Medical CE and Australian TGA. Its unique designs also earn multiple global patents.

Dual wavelength

ExQ-laser is equipped with 2 wavelengths (1064nm and 532nm) and automatic wavelength switching system from interface

1064nm for nevus of ota, black and blue tattoo

532nm for freckles, café-au-lait spots, red tattoo


Q-Switched ND YAG Laser Machine


User-friendly interface


High-sensitive touchscreen display

Intuitive interface design

Safely and effectively recommend clinical parameters

Minimalistic design to enhance visual effects and a proper sense of reality

Multi-language

The ability to fine-tune the parameters of the procedure


How it works

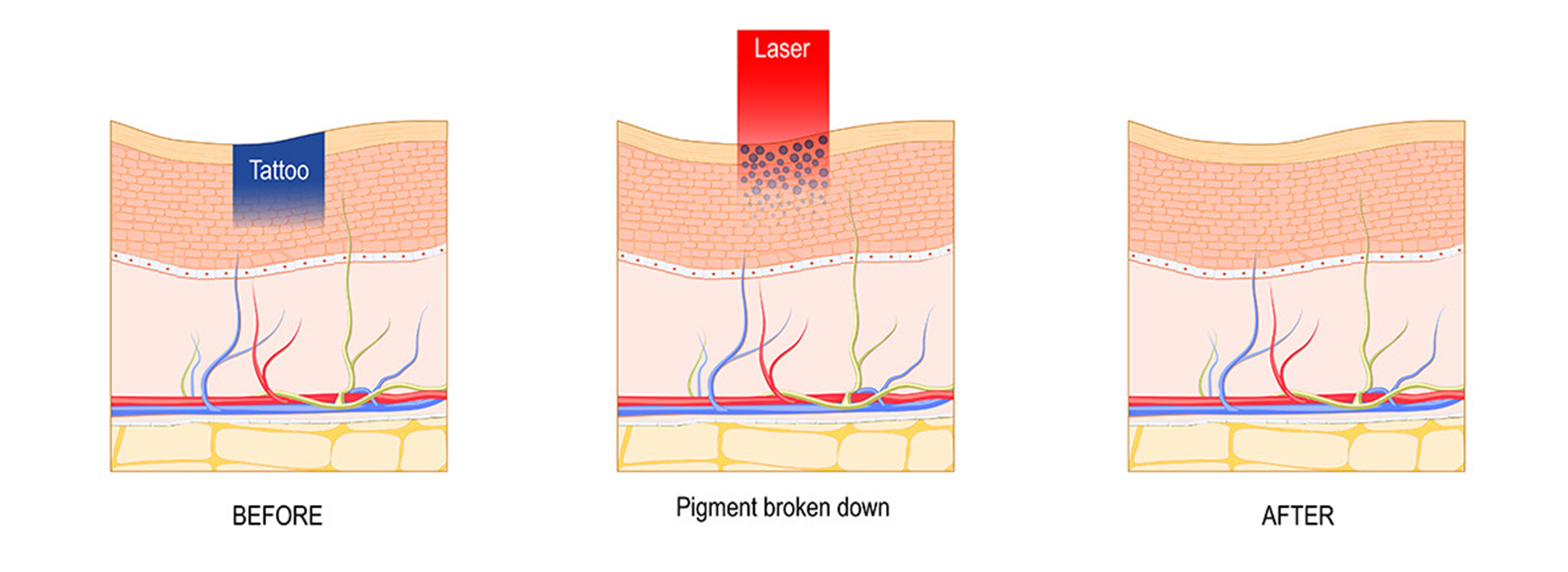

Treatment principle of Monaliza-2 Q-Switched Nd: YAG Laser Therapy Systems is based on laser selective photothermy and blasting mechanism of Q-switched laser. Energy form particular wavelength with accurate dose will act on certain targeted color radicals: ink, carbon particles from derma and epidermis, exogenous pigment particles and endogenous melanophore from derma and epidermis. When suddenly being heated, Pigment particles immediately blast into smaller pieces, which will be swallowed by macrophage phagocytosis and enters into lymph circulation system and finally be discharged out of body.


Q-Switched ND YAG Laser Machine

Functions

1. Melasma/Hyperpigmentation/ lentiginose / Speckle/Tattoo Removal etc.

2. Port wine birthmarks /telangiectasias /Spider angioma /Cherry angioma Spider nevi etc.

3. Carbon peeling treatment

4. Skin rejuvenation /Balance uneven skin tones /Shrink pore


Q-Switched ND YAG Laser Machine

Laser typeSingle pulseDouble pulseLong pulse
1064nm energy100-600MJ100-1200MJ100-1000MJ
532nm energy100-300MJ100-600MJ/
Frequency 1-10Hz1-5Hz1-5Hz
Pulse duration6ns1ns6ns1ns200ns
Spot size2-10mm continiously adjustable, error less than 20%
Power supply 110-240VAC, 50-60Hz
Aiming beam635nm, <5mW
Total weight (include articulated arm)<80kg
Dimentions (without articulated arm, width * length * height370mm x 957mm x 922mm
